Diamonhead VRS rail system Empty Diamonhead VRS rail system

Post by Solscud007 Mon Jan 20, 2014 6:08 pm

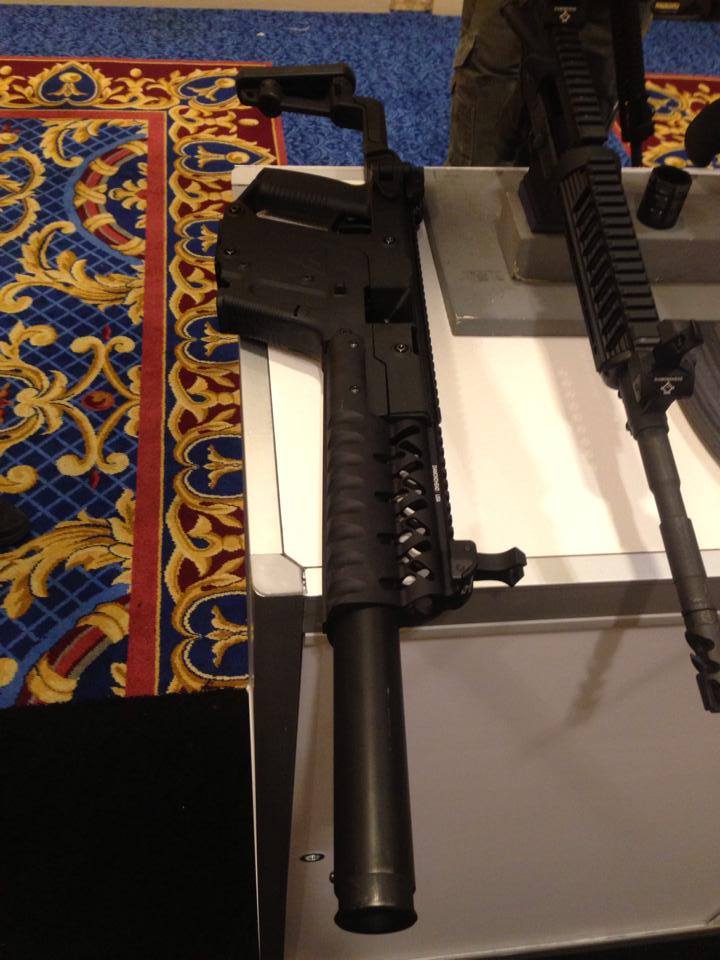

So I talked to the people at Diamond head at SHOT SHOW 2014.

Diamonhead VRS rail system Vrs210
Diamonhead VRS rail system Vrs10
Diamonhead VRS rail system Vrs310

Retail is $180. Coming out in a few months. Right now this is the only one in existence. I would prefer it to be longer for increased sight radius. One issue I had was receiver height rail. It makes the rail system very tall. Too tall to grasp comfortably in my preferred method.
Solscud007
Solscud007
MOD

Posts : 1580
Join date : 2012-01-05
Age : 43
Location : Pittsburgh, PA

https://www.facebook.com/pages/Kriss-Super-V/157275704339968?sk=w

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by Outlaw89 Thu Jan 23, 2014 10:17 pm

First, it needs a rail on the bottom and ability to put ones on the sides, and second, it needs to be able to take the light in the front like the vector upper receiver can

Outlaw89

Posts : 9
Join date : 2014-01-20

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by Outlaw89 Thu Jan 23, 2014 10:21 pm

If it is ever able to do that I might get it for my SBR with a suppressor

Outlaw89

Posts : 9
Join date : 2014-01-20

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by Solscud007 Fri Jan 24, 2014 9:30 am

It can take rails on the bottom. Using a light in the receptacle is possible, but the problem is you will get some serious shadow. The light will be in a tunnel so it will cut off the corona of the light.
Solscud007
Solscud007
MOD

Posts : 1580
Join date : 2012-01-05
Age : 43
Location : Pittsburgh, PA

https://www.facebook.com/pages/Kriss-Super-V/157275704339968?sk=w

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by Jedi380 Fri Jan 24, 2014 10:36 am

I think he meant that you should be able to mount a light in the front, above the barrel, so it works properly.  ;)
Jedi380
Jedi380

Posts : 239
Join date : 2013-01-24
Location : Dayton, OH

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by MadDogDan Fri Jan 24, 2014 3:42 pm

I am good with the design just the way it is provided they thread a few holes in the 3 & 9 position so you can add short rails. With rails on the side you can then mount your light on either side. I would gladly move my light from the receiver socket to the side of a rail as nice as that. I have an SBR with TiRant suppressor which would look great as it would only stick out the front of the handguard a few inches.

MadDog

MadDogDan

Posts : 175
Join date : 2013-03-20

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by CatMostFeared Tue Feb 04, 2014 8:11 pm

that is badass to bad my Osprey wont work with it.
CatMostFeared
CatMostFeared
Admin

Posts : 799
Join date : 2012-01-05
Age : 55
Location : Kentucky

http://www.krisstalk.com

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by MadDogDan Mon Apr 28, 2014 4:24 pm

Anyone know if Diamond is going to bring this handguard to market?

MadDogDan

Posts : 175
Join date : 2013-03-20

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by bolus Wed May 21, 2014 12:47 pm

Its now listed on their store though back order.

http://www.store-diamondhead-usa.com/product_p/7381.htm

bolus

Posts : 43
Join date : 2014-05-12

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by kanewtervalve Wed May 21, 2014 12:54 pm

It wasn't even in their lineup a couple days ago so it should be coming out soon.
kanewtervalve
kanewtervalve

Posts : 31
Join date : 2014-02-06

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by bolus Wed May 21, 2014 1:48 pm

I put in an order and got an email that it will ship in 1-2 weeks

bolus

Posts : 43
Join date : 2014-05-12

Back to top Go down

Diamonhead VRS rail system Empty FYI: Now on Diamon Head's site

Post by Mattrog Wed May 21, 2014 6:14 pm

http://www.store-diamondhead-usa.com/product_p/7381.htm

Mattrog

Posts : 21
Join date : 2013-05-19

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by bolus Thu May 29, 2014 11:17 pm

I got mine today.  You can add a rail to the bottom

Diamonhead VRS rail system OeJwIoZ

Diamonhead VRS rail system R9qRE52

bolus

Posts : 43
Join date : 2014-05-12

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by kanewtervalve Fri May 30, 2014 11:09 am

I think I need one. Very Happy
kanewtervalve
kanewtervalve

Posts : 31
Join date : 2014-02-06

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by HarleyD1259 Fri May 30, 2014 1:13 pm

I wonder if you could mount an AAC Ti-Rant/piston on a 6.5" barrel with the Diamondhead VRS Rail attached? (Or any other 6-7" long 45ACP suppressor)....Will have to compare the AAC diameter with that of the VRS Rail.

HarleyD1259

Posts : 3
Join date : 2013-09-16

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by bolus Fri May 30, 2014 1:49 pm

It also offers an interesting look if you remove the barrel shroud (its possible to remove the shroud without removing the VRS)

Anyone know the size and thread pitch for the bolt holes on the sides?  the bolts that came with the VRS are the wrong size to fit those 4 holes on the vector

Diamonhead VRS rail system PELapW0

bolus

Posts : 43
Join date : 2014-05-12

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by kanewtervalve Sat May 31, 2014 10:05 am

Local hardware store will have them, M4(4mm), not sure what length you need but they're only 20 cents apiece.
kanewtervalve
kanewtervalve

Posts : 31
Join date : 2014-02-06

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by kanewtervalve Sat May 31, 2014 7:39 pm

I placed my order yesterday and the charge is pending on my card so they must have some in stock.
kanewtervalve
kanewtervalve

Posts : 31
Join date : 2014-02-06

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by MadDogDan Sun Jun 01, 2014 4:35 pm

HarleyD1259 wrote:I wonder if you could mount an AAC Ti-Rant/piston on a 6.5" barrel with  the Diamondhead VRS Rail attached? (Or any other 6-7" long 45ACP suppressor)....Will have to compare the AAC diameter with that of the VRS Rail.

The TiRant will work as I have one on my SBR and the OD of the TiRant is smaller than the OD of the barrel shroud on the 16" you see pictured.  I am going to order one of these handguards tomorrow and will post pictures of what the TiRant looks like under the Diamondhead rail. My guess is that only about 4 inches of the suppressor will stick out giving it that MP5-SD look.

MadDogDan

Posts : 175
Join date : 2013-03-20

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by HarleyD1259 Sun Jun 01, 2014 10:34 pm

Thanks MadDogDan. Look forward to seeing your pics of the Ti-Rant and Diamondhead Rail combo.

HarleyD1259

Posts : 3
Join date : 2013-09-16

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by HarleyD1259 Sun Jun 01, 2014 10:41 pm

Just ordered a Diamondhead Rail myself. The site said "back ordered" but hopefully it will not take long to receive it.

Thanks for the info regarding the Ti-Rant/shroud diameter comparison.

HarleyD1259

Posts : 3
Join date : 2013-09-16

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by sniiped Tue Jun 03, 2014 1:57 am

MadDogDan wrote:
HarleyD1259 wrote:I wonder if you could mount an AAC Ti-Rant/piston on a 6.5" barrel with  the Diamondhead VRS Rail attached? (Or any other 6-7" long 45ACP suppressor)....Will have to compare the AAC diameter with that of the VRS Rail.

The TiRant will work as I have one on my SBR and the OD of the TiRant is smaller than the OD of the barrel shroud on the 16" you see pictured.  I am going to order one of these handguards tomorrow and will post pictures of what the TiRant looks like under the Diamondhead rail.  My guess is that only about 4 inches of the suppressor will stick out giving it that MP5-SD look.

i'm highly curious how that turns out, gotta upload some pics when it's setup

sniiped

Posts : 23
Join date : 2013-08-16

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by kanewtervalve Tue Jun 03, 2014 5:39 pm

Got mine today, I guess they are in stock.
kanewtervalve
kanewtervalve

Posts : 31
Join date : 2014-02-06

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by kanewtervalve Wed Jun 04, 2014 10:13 am

Good news: Fits perfect, looks great, very well made and aluminum not plastic.
Bad news: 1)shitcan the flashlight cause it won't work on top anymore
2)make sure you have your own mounting screws for it, doesn't come with the
ones.
3)doesn't come with any rails, so I'm back to square one with my forward grip
my laser.
kanewtervalve
kanewtervalve

Posts : 31
Join date : 2014-02-06

Back to top Go down

Diamonhead VRS rail system Empty Re: Diamonhead VRS rail system

Post by bolus Wed Jun 04, 2014 10:52 am

kanewtervalve wrote:Good news: Fits perfect, looks great, very well made and aluminum not plastic.
Bad news: 1)shitcan the flashlight cause it won't work on top anymore
               2)make sure you have your own mounting screws for it, doesn't come with the
                  ones.
               3)doesn't come with any rails, so I'm back to square one with my forward grip
                  my laser.

Apparently the short and long rail accessories will fit the bottom of the VRS so I have one on order so I can try my forward grip

http://www.store-diamondhead-usa.com/product_p/2711.htm

bolus

Posts : 43
Join date : 2014-05-12

Back to top Go down
