Re: Laser in the light house

Post by mambro on Tue Aug 07, 2012 1:03 pm

CatMostFeared wrote:...I had to turn the housing on the laser down to get it the right size...
Can you tell us more about this step? It doesn't look like you used the SureFire adapter at all and I'm curious how it's being kept "straight". I can see the set screw up front (and assume the other further in is being used too), but what's holding the rest in place? Your finished product looks really good! Very Happy
avatar
mambro
MOD

Posts : 608
Join date : 2012-01-08
Location : McKinney, TX

Back to top Go down

Re: Laser in the light house

Post by jdw67 on Tue Aug 07, 2012 1:22 pm

CatMostFeared wrote:And now I have a KRISS vector with Green Laser in the Lighthouse





NICE!!!!!!!!!

Details, please...

jdw67

Posts : 32
Join date : 2012-07-31

Back to top Go down

Re: Laser in the light house

Post by CatMostFeared on Wed Aug 08, 2012 4:07 pm

The light is just a little larger than the opening, so I took a 7/8 reamer by hand and opened it up. The fit is really tight and after I pushed the laser in it was only 1 turn up then 1 turn to the left and it lined up with my EOTech. The light set screw also holds it in place.
avatar
CatMostFeared
Admin

Posts : 799
Join date : 2012-01-05
Age : 48
Location : Kentucky

http://www.krisstalk.com

Back to top Go down

Re: Laser in the light house

Post by jdw67 on Thu Aug 09, 2012 3:07 am

Some nice mods, but I'm kinda lazy. Thinking of picking up a laser/ light combo to mount on the side rail...

jdw67

Posts : 32
Join date : 2012-07-31

Back to top Go down

The Leapers UTG SCP-LS269 fits "almost" perfectly

Post by rich-miller on Sun Aug 19, 2012 2:29 pm

I've wanted to put a laser in the lighthouse since i got my Vector. I bought the Leapers UTG SCP-LS269 from CTD.com and set out to tackle this mini project. It does fit , but it takes some custom modding of the laser to get it to work. I literally shaved down the end cap (that hold in the battery) to paper thin edges to make it work, but it slides in nicely after you take off the fancy edged and bevel. A little gun lube on the laser and keeping the end cap slightly loose did the trick. I also had to shim the body of the laser a bit with some copper shims (and crazy glue to keep it tight), but the placement there is far better for a laser than a light so it was worth the work. This is especially true in california with a long barrel where the light gets partially blocked by the barrel shroud. I mounted the Flashlight on the right side optional rail kit.

It look about 6 hours to grind down the end cap of the laser without melting the wires and electronics, but it was worth it. Smile

Alignment is perfect, suspicions confirmed!!
avatar
rich-miller

Posts : 2
Join date : 2012-08-19

Back to top Go down

Re: Laser in the light house

Post by mambro on Sun Aug 19, 2012 2:37 pm

Hey, cool! Post some pics when you get a chance. I'm still waiting on the part from Leapers for the SCP-LS279 that I have. The 279 looks to be a smaller unit then the one you got working. Very Happy


Last edited by mambro on Sun Aug 19, 2012 3:01 pm; edited 2 times in total (Reason for editing : Added a pic of Rich's 269)
avatar
mambro
MOD

Posts : 608
Join date : 2012-01-08
Location : McKinney, TX

Back to top Go down

Re: Laser in the light house

Post by rich-miller on Sun Aug 19, 2012 2:48 pm

I used the adapter from the TacPac too, that's why i needed to shim the body of the laser, to make it fit "perfectly", it was about .1 shy. There is a small 1/8 inch gap between the body and the adapter because my goal was to NOT modify the upper body at all and the laser is about 1/8 inch longer than the length of the cavity. I'm on the way to the range right now, but i made a picture of the gun my avatar. Smile

From what i can tell, that's the same kit that i used. I thought about taking pictures as i was doing it, but i was lazy, sorry.
avatar
rich-miller

Posts : 2
Join date : 2012-08-19

Back to top Go down

Re: Laser in the light house

Post by GTIguy315 on Fri Dec 28, 2012 7:49 am

Envy..

GTIguy315

Posts : 21
Join date : 2012-12-24

Back to top Go down

Re: Laser in the light house

Post by Legion2512 on Fri Dec 28, 2012 1:51 pm

just a random thought. there is an airsoft version of the surefire for $60 with mount for Vector. Im wondering if someone with technical knowledge can use that body for a laser.
avatar
Legion2512

Posts : 32
Join date : 2012-12-23
Location : Southwest Florida

Back to top Go down

Re: Laser in the light house

Post by mambro on Wed Jan 23, 2013 4:29 am

TEASER ALERT: Leapers/UTG manufactured a new flip to side universal mount in early January:

RG-FL25QS
http://www.leapers.com/prod_detail.php?mitem=Mounting%20Systems&itemno=RG-FL25QS

Why this is important to me is that this mount contains an adapter/sleeve that fits the green laser... the very one that I mentioned earlier in this thread.



The fine folks at Leapers shipped a sleeve to me for a test fit with the Vector. I took the saw to it for length... and it's a perfect fit into the KRISS SureFire E1B adapter... set screws and all! One cut with a Sawzall blade and touch up the cut edge with a file and mount it. (The cut edge goes inside the SureFire adapter anyways.) No drilling required for the set screws either. It's been a long time coming, but it was worth the wait (to me) for that "stock" look using off-the-shelf parts with no modifications to the Vector.

All I have right now are phone camera pics that I will try to get posted soon.... so, I'll be the first one to say it:

nopics



Last edited by mambro on Mon Jan 28, 2013 1:49 pm; edited 2 times in total (Reason for editing : Leapers link and pic)
avatar
mambro
MOD

Posts : 608
Join date : 2012-01-08
Location : McKinney, TX

Back to top Go down

Re: Laser in the light house

Post by Solscud007 on Wed Jan 23, 2013 3:00 pm

Yes worthless!!!

_________________
Most of the information I find and collect about the Kriss is documented on my facebook page.
http://www.facebook.com/pages/Kriss-Super-V/157275704339968
avatar
Solscud007
MOD

Posts : 1580
Join date : 2012-01-05
Age : 37
Location : Pittsburgh, PA

http://www.facebook.com/pages/Kriss-Super-V/157275704339968?sk=w

Back to top Go down

Re: Laser in the light house

Post by mambro on Fri Jan 25, 2013 3:12 am

Here are the not-so-great phone camera pics...

Here is the Leapers/UTG adapter. Note the UTG letters at the bottom of the "bezel" end and the split running the length of it.


Only one end has the "bezel" and that's the end we need to cut off to use with the SureFire adapter.


Make the cut right where the diameter changes... like so:


Slide the "bezel" over the laser...



You want the factory cut that runs the length to be on top. That will be used to align the set screw of the SureFire adapter and hold the laser in place. I put the output end facing down on a hard surface and put gentle downward pressure on the SureFire adapter while screwing in the 1.5mm set screw. (There was NO pressure required to put these together, I was just going for alignment.) You also need to "index" the cut slot onto the laser body to where you can still access the windage/elevation adjustment screws on the head of the laser. Speaking of screws, you can see the two mounting screw marks left on the SureFire body in the picture above. That's what we also need with the indexing... a flat area to make contact with on the laser body.



Insert the whole unit (after installing the battery and pressure switch assembly) into the Vector upper. Put that 2mm set screw back in at the end of the top rail... being sure to align it to the hole in the SureFire adapter.


If you pull the whole length of cable through, you will get this Suspect :


So, try experimenting with leaving coils in the upper until you find what works for you... like this:


Here's what it looks like all together:





...and if you don't have a side rail to hold the cable and you didn't install the velcro onto the pressure switch for proper mounting... and you use what is laying around at 1:30 in the morning... you get this MacGyver config jocolor :


Now I need to circle back with the Leapers/UTG folks and find out how KRISS Talk members can go about ordering just the sleeve for this. Who knows... maybe they can also whip up straight cables to match the length of the SureFire rig if there is enough demand.

cheers
avatar
mambro
MOD

Posts : 608
Join date : 2012-01-08
Location : McKinney, TX

Back to top Go down

Re: Laser in the light house

Post by Solscud007 on Fri Jan 25, 2013 10:54 am

Pretty slick!!

_________________
Most of the information I find and collect about the Kriss is documented on my facebook page.
http://www.facebook.com/pages/Kriss-Super-V/157275704339968
avatar
Solscud007
MOD

Posts : 1580
Join date : 2012-01-05
Age : 37
Location : Pittsburgh, PA

http://www.facebook.com/pages/Kriss-Super-V/157275704339968?sk=w

Back to top Go down

Re: Laser in the light house

Post by MC BEAST on Fri Jan 25, 2013 6:31 pm

Let me know what Surefire tells you, I'd definitely be interested in one.
Nice job!




MC BEAST

Posts : 10
Join date : 2012-12-31
Location : Orange Park, FL

Back to top Go down

Re: Laser in the light house

Post by Solscud007 on Fri Jan 25, 2013 6:35 pm

MC BEAST wrote:Let me know what Surefire tells you, I'd definitely be interested in one.
Nice job!


i think you mean UTG. Those are the people he is trying to get shorter cables from.

If at all possible I would like to get cables that can clamp onto rails like the SR07 tape switch from SF.

_________________
Most of the information I find and collect about the Kriss is documented on my facebook page.
http://www.facebook.com/pages/Kriss-Super-V/157275704339968
avatar
Solscud007
MOD

Posts : 1580
Join date : 2012-01-05
Age : 37
Location : Pittsburgh, PA

http://www.facebook.com/pages/Kriss-Super-V/157275704339968?sk=w

Back to top Go down

Re: Laser in the light house

Post by Jedi380 on Fri Jan 25, 2013 6:45 pm

mambro wrote:
...and if you don't have a side rail to hold the cable and you didn't install the velcro onto the pressure switch for proper mounting... and you use what is laying around at 1:30 in the morning... you get this MacGyver config jocolor :


cheers

No duct tape?! wtf Impressive! beers

_________________
Never Laugh At A Sleeping Dragon.
avatar
Jedi380

Posts : 239
Join date : 2013-01-24
Location : Dayton, OH

Back to top Go down

Re: Laser in the light house

Post by nelsgee on Sun Jan 27, 2013 3:34 am

How is the laser itself? Some reviews say the laser is not that bright. I was doing some searching and I think aimshot has a laser that is .81". Do you think that would fit also?



Last edited by nelsgee on Sun Jan 27, 2013 12:40 pm; edited 1 time in total (Reason for editing : Spelling)

nelsgee

Posts : 2
Join date : 2013-01-26

Back to top Go down

Re: Laser in the light house

Post by CatMostFeared on Sun Jan 27, 2013 11:39 pm


No duct tape?! wtf Impressive! beers

10 10 10
avatar
CatMostFeared
Admin

Posts : 799
Join date : 2012-01-05
Age : 48
Location : Kentucky

http://www.krisstalk.com

Back to top Go down

Re: Laser in the light house

Post by mambro on Mon Jan 28, 2013 1:20 pm

nelsgee wrote:How is the laser itself? Some reviews say the laser is not that bright. I was doing some searching and I think aimshot has a laser that is .81". Do you think that would fit also?
The green laser seems pretty bright to me. Of course, "mileage may vary" with just what light conditions, distance, and color of target you are working with. The output rating on the box and website says 2.0-4.8 mW which is not the brightest in the market, but then again "power is restricted in most jurisdictions not to exceed 5 mW" for laser pointers.

There is also another thread with member "cafox" interested in 3D printing something "similar" to the SureFire adapter, but with a custom inner diameter. He mentions the stock SureFire adapter inner diameter as 0.825"... so, that .81 diameter AimShot *should* fit (then you need to verify length).

http://www.krisstalk.com/t544-powertac-cadet-ii-light-and-kriss-light-adapter-problem

cheers


Last edited by mambro on Mon Jan 28, 2013 2:29 pm; edited 3 times in total (Reason for editing : Update with cafox's measurement)
avatar
mambro
MOD

Posts : 608
Join date : 2012-01-08
Location : McKinney, TX

Back to top Go down

Re: Laser in the light house

Post by jetsaber on Sat Feb 09, 2013 2:44 pm

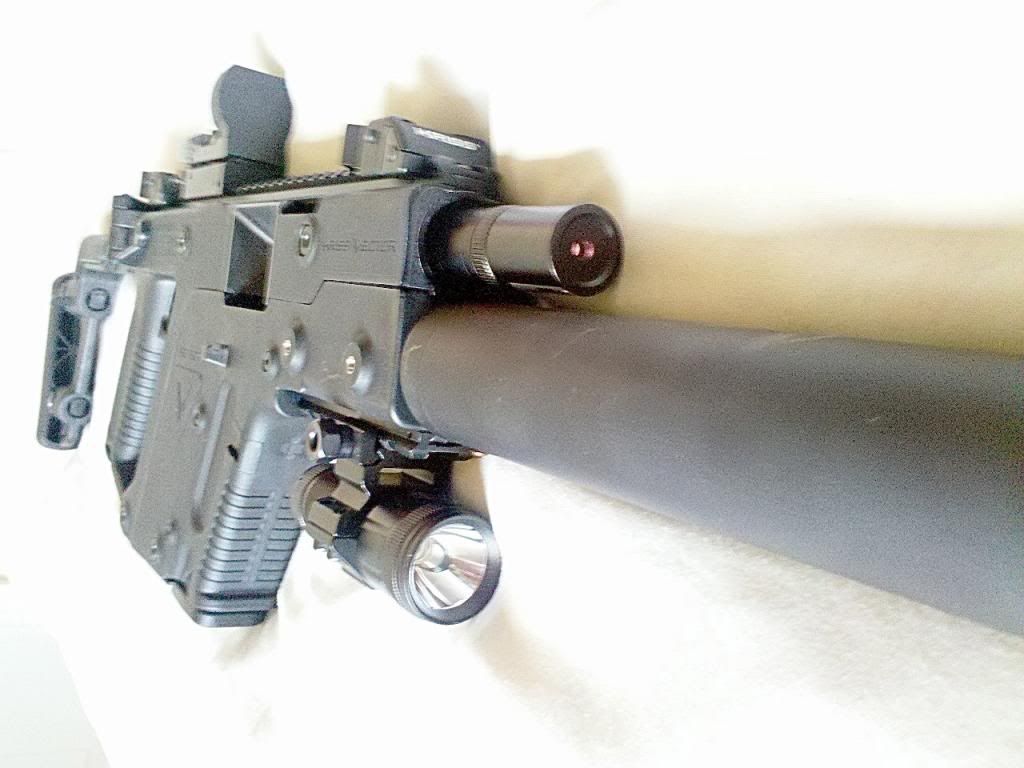

I am using a laser I found . It slides right into the hole above the barrel where the light fit's into . All I have to do now is make a pressure switch and I'll be done . Dimension: 11cm x 2.1cm (4.3inches x 0.8inches)
It look's red it's not it's Green .

avatar
jetsaber

Posts : 14
Join date : 2013-02-02
Age : 49
Location : California Republic

Back to top Go down

Re: Laser in the light house

Post by nelsgee on Wed Feb 27, 2013 12:57 pm

mambro wrote:
nelsgee wrote:How is the laser itself? Some reviews say the laser is not that bright. I was doing some searching and I think aimshot has a laser that is .81". Do you think that would fit also?
The green laser seems pretty bright to me. Of course, "mileage may vary" with just what light conditions, distance, and color of target you are working with. The output rating on the box and website says 2.0-4.8 mW which is not the brightest in the market, but then again "power is restricted in most jurisdictions not to exceed 5 mW" for laser pointers.

There is also another thread with member "cafox" interested in 3D printing something "similar" to the SureFire adapter, but with a custom inner diameter. He mentions the stock SureFire adapter inner diameter as 0.825"... so, that .81 diameter AimShot *should* fit (then you need to verify length).

http://www.krisstalk.com/t544-powertac-cadet-ii-light-and-kriss-light-adapter-problem

cheers

just an fyi... if you want an green laser to fit in the light house and you want a full 5mw and you don't want to do any modding, don't get the aimshot 8100. it is not .81" it is actually .86". needless to say it does not fit. it going back to opticplanet. Sad

nelsgee

Posts : 2
Join date : 2013-01-26

Back to top Go down

Re: Laser in the light house

Post by Legion2512 on Thu Feb 28, 2013 4:09 pm

I just found a site that has lasers (red and green) with a mount for vectors. It's designed for airsoft guns, so I am not sure how long it will last on a real vector. regardless its cheap enough to give it a shot (no pun).

http://www.wgcshop.com/

type vector in search bar on page.
avatar
Legion2512

Posts : 32
Join date : 2012-12-23
Location : Southwest Florida

Back to top Go down

Re: Laser in the light house

Post by mambro on Thu Feb 28, 2013 5:26 pm

Legion2512 wrote:I just found a site that has lasers (red and green) with a mount for vectors. It's designed for airsoft guns, so I am not sure how long it will last on a real vector. regardless its cheap enough to give it a shot (no pun).

http://www.wgcshop.com/

type vector in search bar on page.
I noticed the blurb at the bottom of the "WGC Shop" page: "All Items Sold Are Toys Only."

Anyways, here's another Hong Kong seller of the same stuff for those interested:

http://shop.ehobbyasia.com/catalogsearch/result/?q=vector&cat=

jocolor
avatar
mambro
MOD

Posts : 608
Join date : 2012-01-08
Location : McKinney, TX

Back to top Go down
